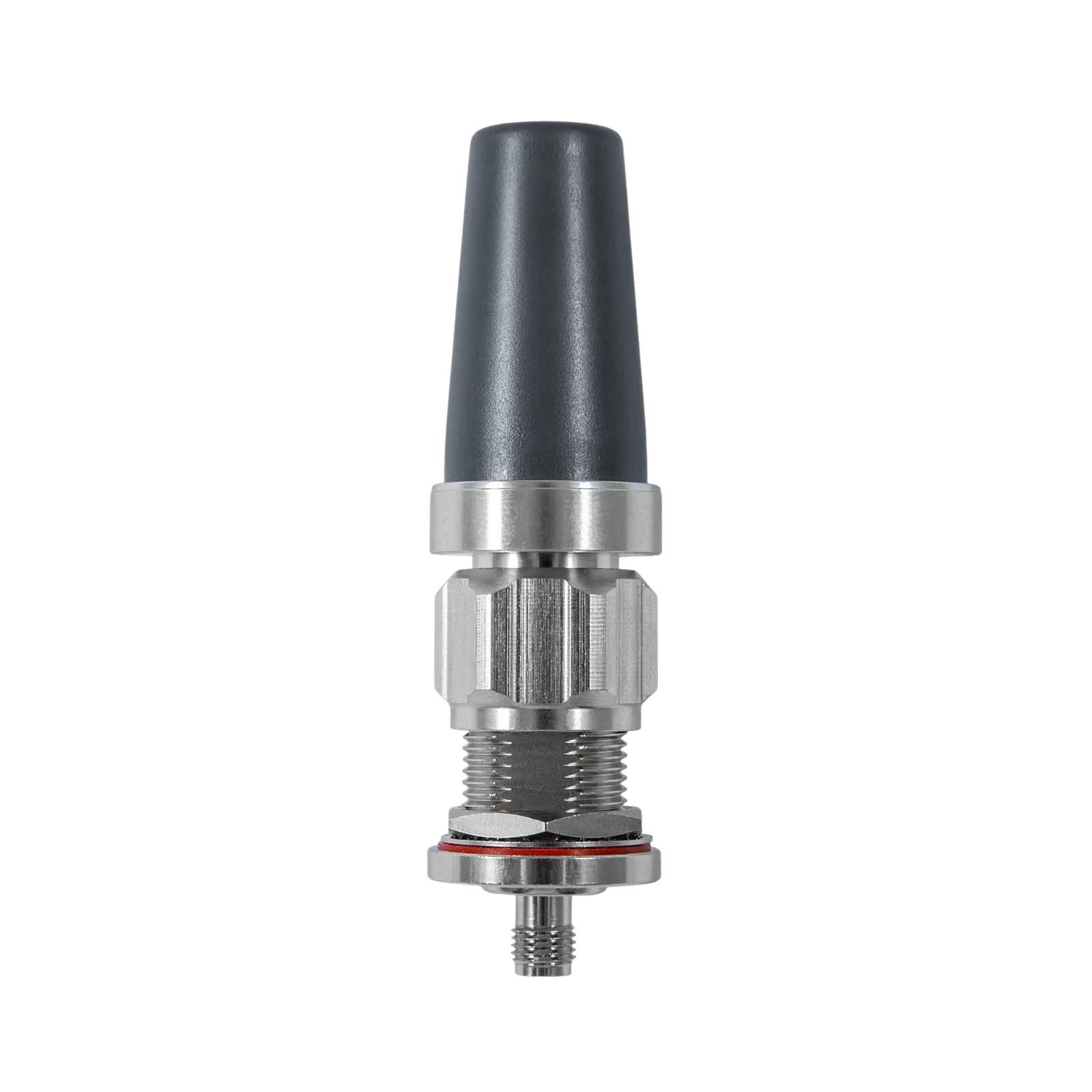

Rundstrahlantenne Art. Nr.: 11126 | Schildknecht AG

Column 1

Opening angle

h: 360°, v: 120°

Polarization

vertical

Antenna gain

2 dB

Protection class (IP)

IP68

Port

SMA-female on the adapter (N-male on antenna)

Mounting

on control cabinet

Suitable antenna cable

10589 (SMA-male 0,5m), 10629 (SMA-male 1m), 10279 (SMA-male 2m), 10273 (SMA-male 4m), 10935 (SMA-male 6m), 10284 (SMA-male 10m)

Optional mounting material

Dimensions in mm

Length: 75 mm

Scope of delivery

Antenna, Antenna base, Nut, O-Ring, Washer

Antenna Frequency

2000 – 2700 MHz

An omnidirectional antenna has an even radiation pattern horizontally in all directions. That means it has a horizontal opening angle of 360°. Therefore it is often used for rotating or mobile applications. Tilt refers to the shifting of the vertical opening angle of an omnidirectional antenna in a specific direction, related to the horizontal level. The image above shows a vertical opening angle of 40° with a tilt of 20°. This means the vertical opening angle has shifted 20° upwards.
You can find more information on antenna technology basics here!
